Dust axial

General features

The dust collector is ideal to remove wood dust from the coarse scale.

How it works:

The material is introduced into the machine from the mouth of the upper load.Within the dust collector the mechanical action of the rotating parts slams freeingthe material from the coarse particulate contaminants. From the mouths of the upper and lower suction is sucked in the air flow necessary to transport to a substation in filtering fine dust separated from the coarse. After undergoing the mechanical action and cleaning aerolics the material retained within the cleaner(dedusted) is discharged from the rear mouth.

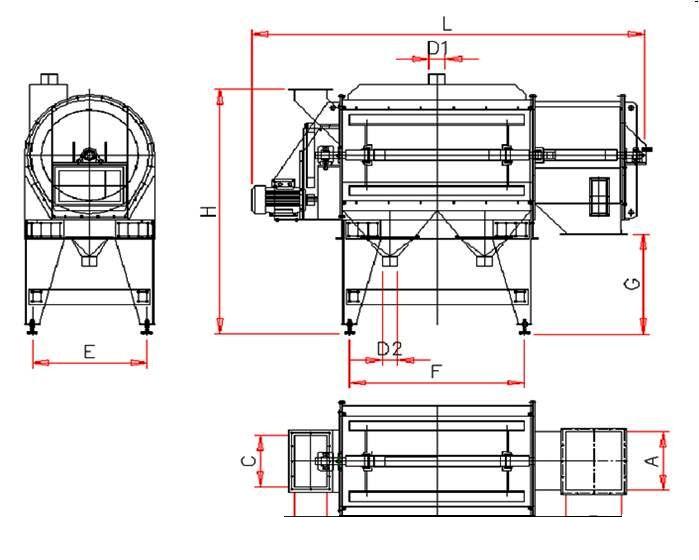

Dimensions:

Model	A mm	B mm	C mm	D mm	D1 mm	D2 mm	E mm	F mm	G mm	H mm	L mm
DA 10/10	577	520	508	300	1x150	2x140	1.060	1.620	980	2.415	3.130
DA 15/10	577	520	508	300	1x150	2x140	1.060	1.620	980	2.415	3.360
DA 20/10	577	520	508	300	1x150	2x140	1.060	1.620	980	2.415	4.130
